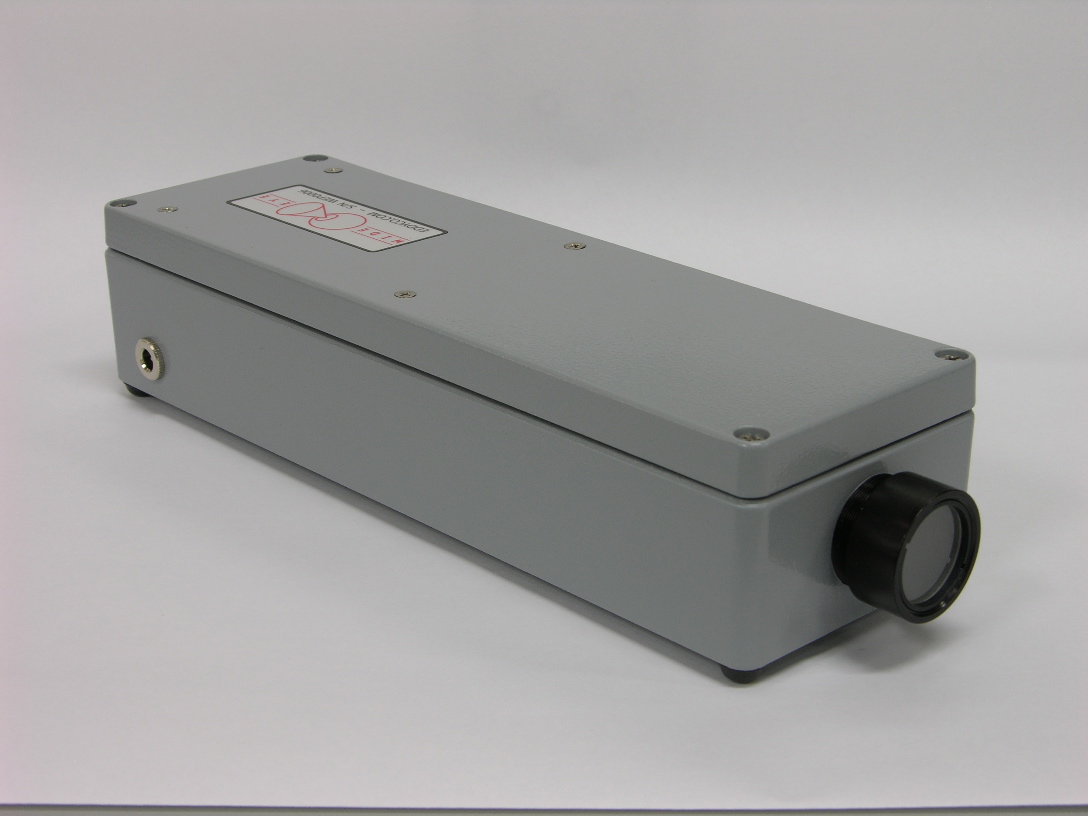

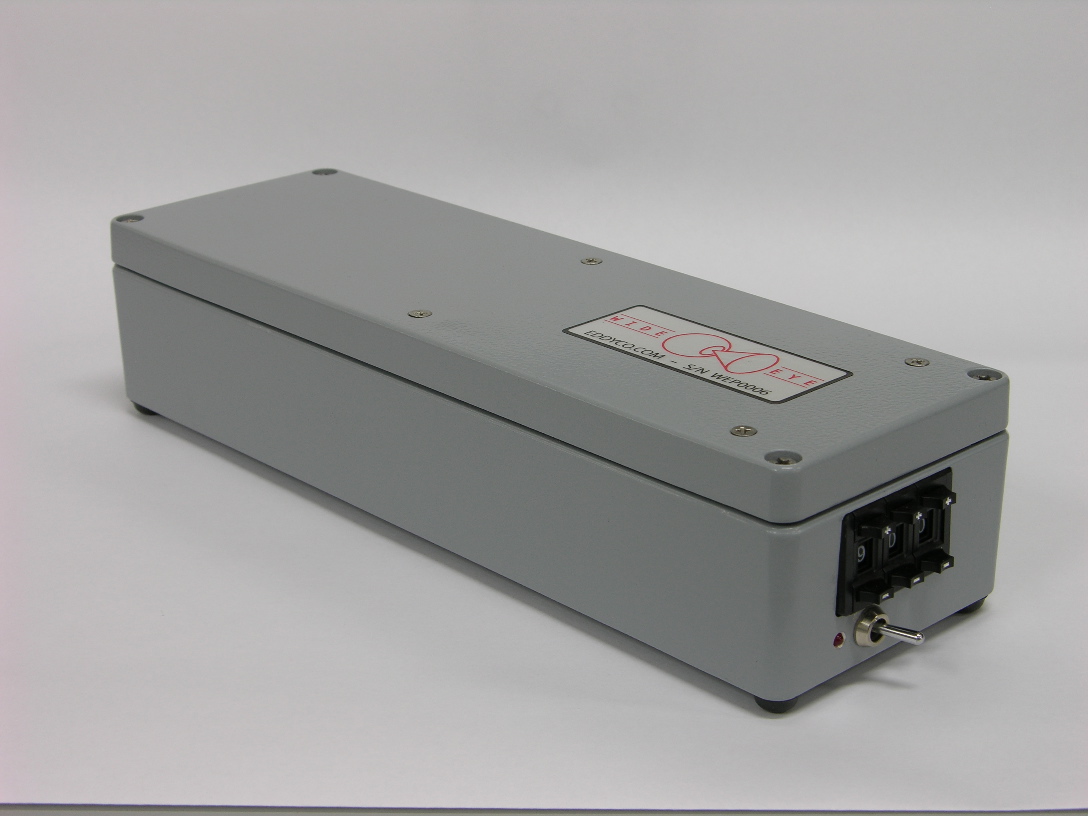

|MS-374 - Wide Eye Calibrator
Part #: MS-374
Hallow cathode supply with current up to 2.00 ma. stable to .0002 ma. Rechargeable battery with approximately 10 hours. Includes charger.

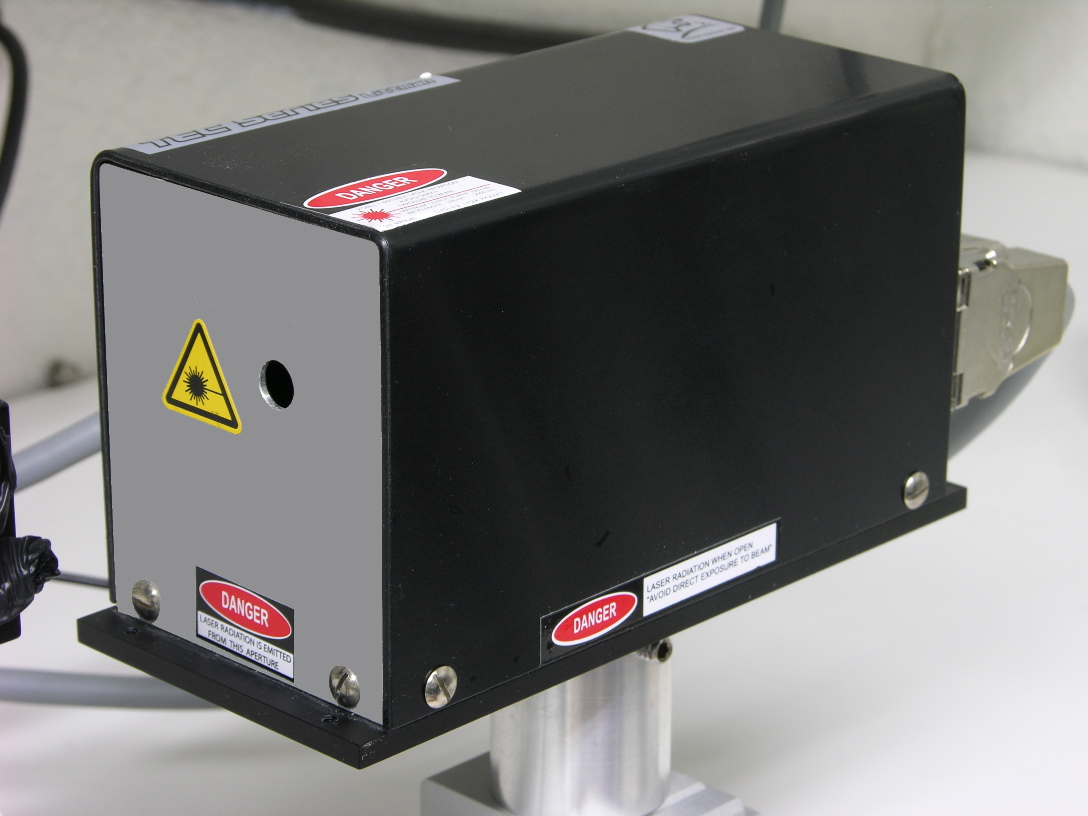

|MS-376 - Laser and LabView Software
Part #: MS-376
Littman laser head and Labview control software. Software includes calibration to give results in mili-angstroms.

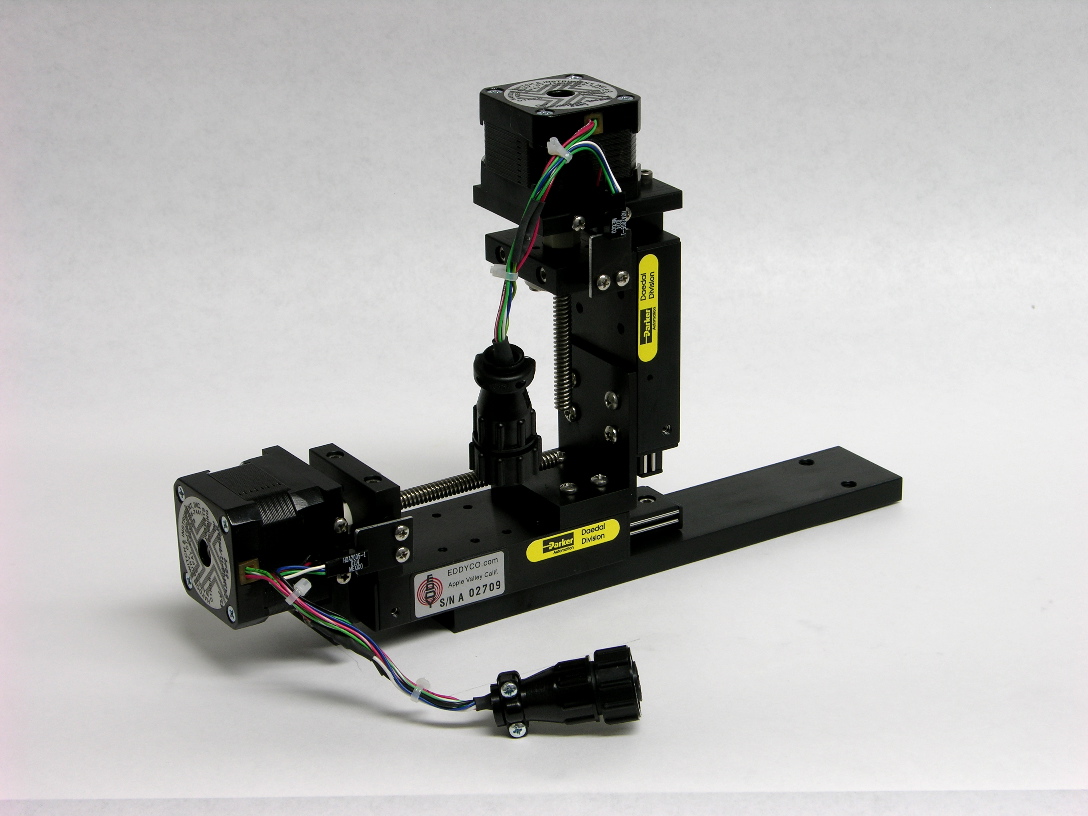

|XY Mover Base
Part #: MS-366
XY stage for filter profiling. Accurate to within .1 mm. X motion is 75 mm and Y motion is 50 mm. Driven by the MS-362.

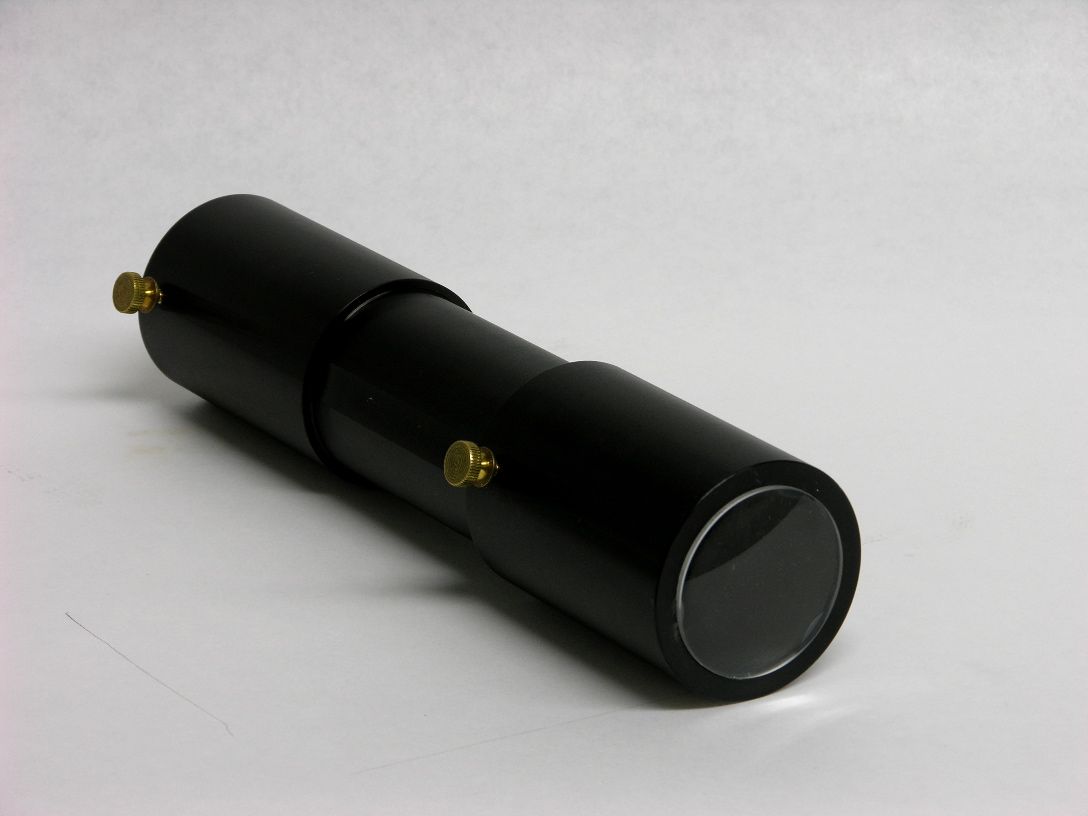

|Hollow Cathode Lamp Enclosure
Part #: MS-368
Used for narrow band profiling measurements. Controlled by the MS-340.

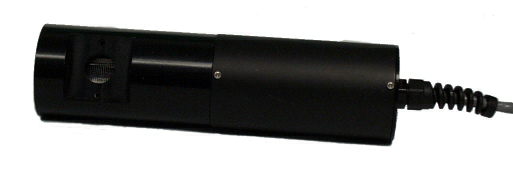

|DC Coupled PMT Detector
Part #: MS-360
Photo Multiplier Tube with a range of 185 - 875 nm. Has a built in power supply. Built in low noise amplifier with a gain of x1 and x100. Adjustable gain by setting the multiplier voltage from 550v to 1000v.
